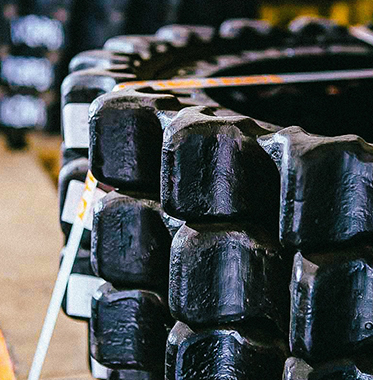

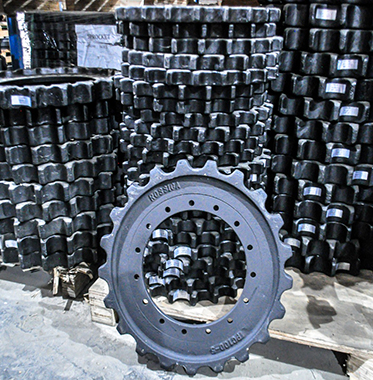

Sprocket

Under Carriage

Specification

Item Ref. A B C D E F G M N Q R
Z
H K
1 WY55 135 415.8 376.4 262 230 9 0 16 20 40 12 6 20.6 19 318 433.8
2 WY60 135 458 418.6 282 250 9 16 20 40 12 6 20.6 21 318 476
3 WY60A 135 458 418.6 300 265 12--16 20 40 12 6 20.6 21 335 476
4 102F2601 135 458 418.6 282 250 12-016 20 40 12 6 20.6 21 318 476
5 FT306 135 458 418.6 262 230 9016 20 40 12 6 20.6 21 318 476
6 XCG60 135 458 418.6 262 230 12-016 20 40 12 6 20.6 21 318 476
7
JY606 135 458 418.6 282 250 12-016 18 40 14 0.6 20.7 21 336 476
8 PG(70-7) 135 458 418.6 260 230 16-017 20 40 12 6 20.6 21 318 476
9
YG80 154 522.5 476.5 300 265 12-0 16 11 40 18 7 23 21 332 535
10 FR(85-7) 154 522.5 476.5 260 230 16-017 11 40 18 7 23 21 300 535
11 R130A 171.1 580.38 529.4 402 362 21-016.5 21 60 18 / / 21 456 592.8
12 R130 171.1 580.38 529.4 410 350 18-017 21 60 18 / / 21 456 592.8
13 PC120 175 593.714 547.4 364 324 15-017 20 42 15 9 23.15 21 435 607
14 FT3058 175.4 649.8 589.7 464 415 16-22 30 71 21 10 30 23 512 659
15 FR(210-7) 190 644.6 583.8 440 402 22--18 27 72 28 10 29.7 21 480 664
16 PC200-5 190 644.5 584.7 506 474 20-19 12 71 16 9.2 30 21 544 659
17 PC220-7 190 644.6 558 440 402 22-17.5 14 71 21.5 9.2 77.5 21 402 659
18 CAT320 190 644.6 585.6 496.3 456 16-21.5 28 65 20 9 29.5 21 456 661.6
19 JY210E 190 644.6 585.2 440 402 22--17 11.5 66 43 7 29.7 21 472
656
20 PZ210 190 644.6 585.2 400 350 16-21 11.5 66 43 7 29.7 21 465 656
21 MJT2436 190 644.6 585.2 440 402 22-17 11.5 66 43 7 29.7 21 472
656
22 20005694 203.2 689.4 622.4 510 460 24--21 19.5 85 36 9.6 33.5 21 560 712.7
23 QUY50D 203.2 689.4 622.4 480 430 20--26 19.5 85 36 9.6 33.5 21 550
712.7
24
TR150.06 203.2 689.4 622.4
455
410 24-21 19.5 85 36 9.6 33.5 21 560 712.7
25 PC(300-7)A 203.2 753 686 492 450 26-22 17 80 27 12 33.5 23 528 770
26 PC(300-7)B 203.2 753 686 472 435 24-22 17 80 27 12 33.5 23 528 770
27
PC400-5 216 800.6 725.9 610 570 26-21 48 90 20 10 37.35 23 663 808
28
PC400-5)A
216 800.6 725.9 510 460 24-21 48 90 20 10 37.35 23 663 808
29
XCG450
216 800.6 725.9 535 490 28-21 22 90 30 10 37.35 23 663 808
30 MJT3254 216 800.6 725.9 480 430 20-25 48 90 20 10 37.35 23 663 808
31 FWZ220 216 732.8 658.5 500 460 36-20 30 90 40 10 37.35 21 600 748.4
32 CE400-6 216 800.6 726.3 490 450 24-22 0 90 55 10 37.15 23 600 821
